To reset the filter light in a Samsung fridge, hold the designated reset button for exactly three seconds until the icon turns blue or turns off. This simple reset works best for owners who just installed a fresh cartridge and need the internal timer cleared.
What You Need to Reset the Filter Light
Photo: www.youtube.com on Google
- A genuine Samsung replacement water filter matching your model code (such as HAF-QIN, HAF-CIN, or HAF-CU1).
- A clean hand towel to catch minor water leaks during cartridge removal.
- A two-gallon bucket or large pitcher for purging air lines.
- Your refrigerator’s user guide to verify specific button labels.
A third-party filter works if it fits the housing correctly, but generic unbranded filters often fail to seat properly and can damage the internal valve. If your internal water lines or filter housing crack, stop immediately and hire an appliance technician to prevent home flooding.
Step-by-Step
- Turn off your refrigerator’s ice maker using the control panel switch before starting to prevent dry cycling while pressure drops.
- Twist the old cartridge counterclockwise one-quarter turn and pull it straight out of the housing between the crisper drawers. Careful: Trapped water pressure can spray out; wrap a small towel around the base before twisting.
- Align the new filter’s lock symbol with the housing mark and push it firmly inside until it stops.
- Rotate the cartridge clockwise one-quarter turn until the locked icon lines up with the indicator mark.
- Dispense two gallons of water into a bucket to flush air pockets and loose carbon fines from the new block.

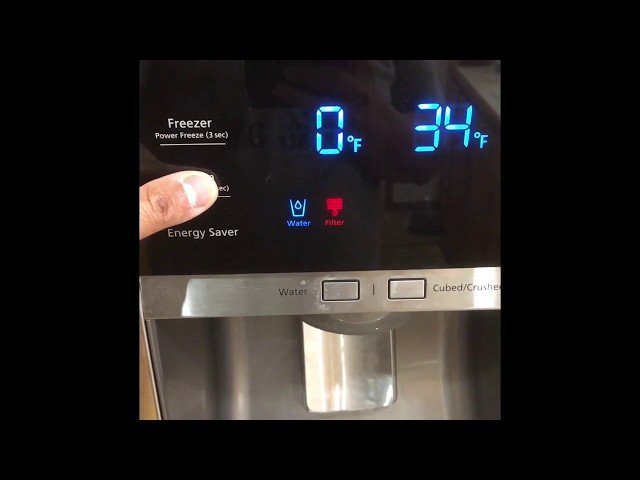

- Locate your panel’s reset button, which is usually labeled “Filter Reset,” “Water,” or “Ice Type.”
- Press and hold that button firmly for three seconds until the chime sounds and the red light turns off. Tip: If the panel uses a secondary function, look for smaller text underneath the main key that says “Hold 3 sec for Filter Reset.”
- Turn the automatic ice maker back on and check the housing area for any slow drips. Careful: If you notice leaks behind the crisper box, reseat the filter; running water through a loose fitting risks floor damage.
Panel Types and Button Variations

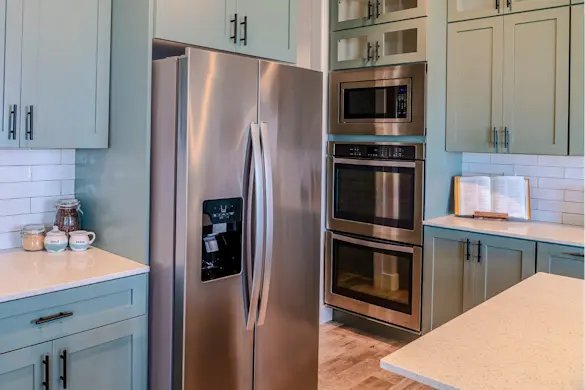

Photo: www.searspartsdirect.com on Google
Different Samsung refrigerator styles place the reset command on different interface keys.
| Panel Style | Time Required | Button Combination | Visual Signal |
|---|---|---|---|
| Exterior Door Dispenser | 3 seconds | Press and hold “Ice Type” / “Filter Reset” | Red icon turns blue or shuts off |
| Internal Edge Control | 3 seconds | Press and hold “Water” or “Fridge” button | Light changes from orange to green |
| Family Hub Touchscreen | 30 seconds | Apps > Fridge Manager > Water Filter > Reset | On-screen status circle returns to 100% |
| French Door Dual Button | 3 seconds | Press “Energy Saver” and “Lighting” together | Warning light beeps and clears |
Pressing the button for only one second will simply switch your ice mode instead of resetting the timer, so hold it firmly past the three-second mark.
How to Tell You Did It Right
A successful reset turns the filter light blue, green, or turns it off entirely, depending on your model year. The panel will chime once to confirm the command registered. If the light stays red or orange, the board didn’t register the three-second hold. This failure happens when a user releases the button too early or presses a key that controls child lock instead. Releasing early only changes the dispenser mode. To prevent this, hold the button down continuously until you hear the audible beep. If the light blinks red rapidly, the internal cartridge didn’t click fully into its locked position; pull it out, realign the tabs, and twist until it locks.
Maintenance Standards and Next Steps
The NSF International drinking water standards outline testing benchmarks for home filtration devices to ensure contaminant reduction. Write the installation date directly on the cartridge label with a marker before sliding it into the housing. Wipe away any pooled moisture in the tray with a dry cloth. Dispose of your old filter in the standard household trash, as carbon block cartridges can’t go into standard curbside recycling bins. This reset cycle lasts roughly six months, which is the standard manufacturer interval for residential filtration.
Alternative Panel Methods
Family Hub Digital Interface
Open the Fridge Manager app on your touchscreen, select the water filter menu, and tap the on-screen reset option. This route takes under a minute, costs nothing extra, and provides an exact visual percentage bar instead of an indicator bulb.
Smartthings Smartphone App
Open your paired phone app, select your refrigerator from the device list, tap settings, and trigger the filter life reset. This method lets you clear the warning remotely, but requires your refrigerator to stay connected to your home Wi-Fi network.
Circuit Power Cycle
Unplug the refrigerator or flip the home circuit breaker for two minutes if the interface buttons remain completely unresponsive. This clears minor logic board freezes, but you still must press the physical reset button once power returns.
Frequently Asked Questions
Can You Reset the Light Without Replacing the Filter?
Yes, holding the reset button for three seconds clears the warning even if no new filter was installed. However, doing this is a bad idea because an old, clogged carbon block can harbor bacteria and restrict household water flow to your dispenser.
Why Is My Samsung Filter Light Still Red After Pressing the Button?
You may have released the button before the full three seconds passed. The trade-off is between a quick tap for changing ice modes and a long hold for system resets; press firmly and wait for the panel chime to finish before letting go.
How Long Does a Samsung Refrigerator Filter Light Stay On?
The light stays lit indefinitely until someone manually clears it on the panel. The refrigerator doesn’t check water clarity on its own; it relies entirely on a six-month internal clock that requires a manual button push to restart.
What Happens If I Ignore the Red Filter Light?
Water flow out of the dispenser door slows down over time as dirt and sediment pack into the carbon pores. The internal timer doesn’t shut off your water, but trapped minerals eventually make your ice cubes taste bad.
Is the Filter Light Timer Based on Gallons or Months?
It triggers on whichever limit arrives first: roughly 300 gallons of dispensed water or six months of calendar time. This varies by model — check the label on your specific appliance to confirm its exact gallon rating.
Who Is This Manual Reset Method Not For?
This guide isn’t for people with inline external reverse osmosis setups that bypass the internal refrigerator housing completely. If your fridge has a permanent filter bypass plug installed, the dispenser light should remain disabled per the installation manual.
