Resetting a dial lock takes about two minutes by setting wheels to 0-0-0-0, turning the shackle 90 degrees, pressing it down firmly, and turning the wheels to your new digits. This method suits owners of standard 4-dial resettable padlocks who already know their lock’s current opening code.
Tools You Need to Reset the Lock
- The current opening code (usually factory preset 0-0-0-0 for new units)
- The lock itself, unlocked and open
- A flat workspace with good lighting
- A pen and small notepad to record your new numbers
- A small coin or flat screwdriver (needed only for luggage locks with a bottom screw slot)
A soft pencil works fine to write down your numbers, but a permanent marker applied directly onto the metal numbers will smear and ruin the dials. If your lock has a frozen dial or broken shackle, you can’t reset it at home; replace the lock or contact a certified locksmith.
Step-by-Step
- Turn all 4 dials to the opening code (use 0-0-0-0 if it’s straight out of the package) and pull the shackle straight up to open it.
- Swivel the shackle exactly 90 degrees counter-clockwise away from the closed position so the notch on the shackle lines up with the slot in the lock housing.
Careful: Turning the shackle 180 degrees instead of 90 degrees will block the internal reset pin from engaging on standard models.
- Push the shackle down firmly into the lock body until it stops moving, usually dropping about 2 millimeters.
Tip: If X model has a bottom reset screw instead of a shackle pin, do A: use a coin to turn that screw 90 degrees; if Y model uses the shackle method, do B: keep steady downward thumb pressure on the shackle while rolling the dials.
- Keep the shackle pressed down flat and roll each dial, one by one, to line up your 4 new chosen numbers along the front guide line.
- Release the downward pressure and pull the shackle back up to its full height.
- Swivel the shackle back 90 degrees clockwise to the normal closed position.
- Push the shackle into the hole, scramble all 4 wheels, and then re-enter your new combination to verify it opens smoothly.
Careful: Scrambling the dials before you pull the shackle back up sets an accidental mystery code, locking you out permanently.
Adjusting for Different Lock Styles
Locks change how they reset based on their body style and intended use.
| Lock Style | Time Needed | What Makes It Different | What to Watch For |
|---|---|---|---|
| Standard 4-Dial Padlock | 2 minutes | Uses 90-degree shackle press | Keep shackle pressed down fully while setting dials |
| Luggage Cable Lock | 1 minute | Uses a small push-button on bottom | Check that button pops back out after setting |
| Built-in Locker Dial | 3 minutes | Needs a reset key inserted in back | Key must turn a quarter turn before wheels move |
| Heavy-Duty Shrouded Padlock | 3 minutes | Has thicker shackle and stiffer spring | Extra thumb pressure needed to hold notch down |
It’s safer to test your new combination twice with the shackle open before you snap it shut on a real locker.
How to Tell You Did It Right
A correct reset lets the shackle close firmly and pop open immediately when your new code lines up on the indicator marks. A poor result happens when the dials feel stiff or the shackle refuses to seat into the casing. Dials slip between digits because uneven thumb pressure allows the internal clutch teeth to catch halfway between two numbers during the reset. You can prevent this problem by holding the shackle down flat against the stop, aligning every wheel cleanly on the centerline, and testing the latch twice before locking your valuables inside.
Security Standards and Maintenance
Safe lock operation follows basic physical security guidelines, such as the hardware requirements defined by the Master Lock combination reset guide for portable safety equipment. Once you finish, store your written combination in a secure password manager rather than leaving it on a scrap of paper nearby. A good mechanical lock reset lasts indefinitely until you choose to change it again; you don’t need to repeat the process on a schedule. If the lock’s internal pins seize or fail to catch, don’t use excessive force or drill into the casing, as this destroys the internal mechanism; take high-security commercial units to an ALOA-certified locksmith.
Other Ways to Do It
Using a Manufacturer Reset Tool

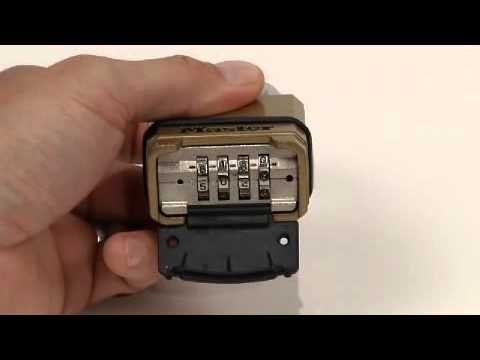

Some brands include a small metal key that slots into the side hole. You insert the tool, turn it 90 degrees, set your code, and twist the tool back. This trades quick convenience for the hassle of keeping track of an extra tool.
Using the Bottom Slide Latch
Many travel locks feature a tiny slider switch on the bottom face. You push the lever from position A to position B, turn your wheels, and slide it back. It saves your fingers from holding down a stiff metal shackle.
Hiring a Professional Locksmith
When you inherit a lock with an unknown code, a locksmith can decode the wheels using specialized shims. This service costs money but saves the lock body from being cut off with bolt cutters.
Frequently Asked Questions
Can You Reset a Dial Lock If You Forgot the Combination?
No. Standard dial locks require the current combination to open the shackle before you can reach the reset notch. If you don’t know the code, you’ll need to decode the wheel resistance or cut the shackle with bolt cutters.
Who This Reset Method Isn’t For?
This method isn’t for single-dial rotary locks, such as standard school hallway locker locks with a turning circular face. Those rotary locks have permanent factory combinations stamped into the internal wheels and can’t be changed by hand.
Why Won’t My Dials Turn After Pressing the Shackle?
The shackle isn’t pushed down far enough to release the dial gears. You must press the shackle firmly until you feel the inner spring bottom out, which clears the locking pins from the dial rings.
What Happens If I Forget My New Code Immediately?
The lock remains permanently locked once you close it and scramble the wheels. You’ll have to try all 10,000 possible numeric combinations in order or cut the lock off your bag or locker.
How Long Does a Dial Padlock Typically Last?
A quality metal dial lock lasts many years if kept dry and clean. Spraying a drop of dry lubricant into the wheel slots once a year prevents road grime and dust from jamming the moving wheels.
Is It Safe to Use 0-0-0-0 as My Daily Code?
No. Factory defaults like 0-0-0-0 or simple patterns like 1-2-3-4 are the first sequences an intruder tests. Pick a four-digit number that isn’t tied to your birth year or address.
