To complete how to reset bmw service indicator lights, turn the car’s ignition on without starting the engine, press and hold the instrument cluster reset button for roughly 10 seconds until the service menu appears, then tap the button to select an item and hold it down to confirm the reset.
The car’s ignition state decides whether the reset works or fails completely. The engine must stay off while the electrical systems run, which means pressing the start button without your foot on the brake pedal.
This guide isn’t for older BMW models with the 20-pin round diagnostic port under the hood from the 1990s. The biggest mistake people make before starting is leaving the driver’s door open, which triggers seatbelt and door chimes that block the instrument cluster from entering diagnostic mode.
Reset the Indicator Using the Cluster Button
- Turn on the ignition by pushing the start-stop button once or twice with your foot off the brake, making sure the engine doesn’t crank.

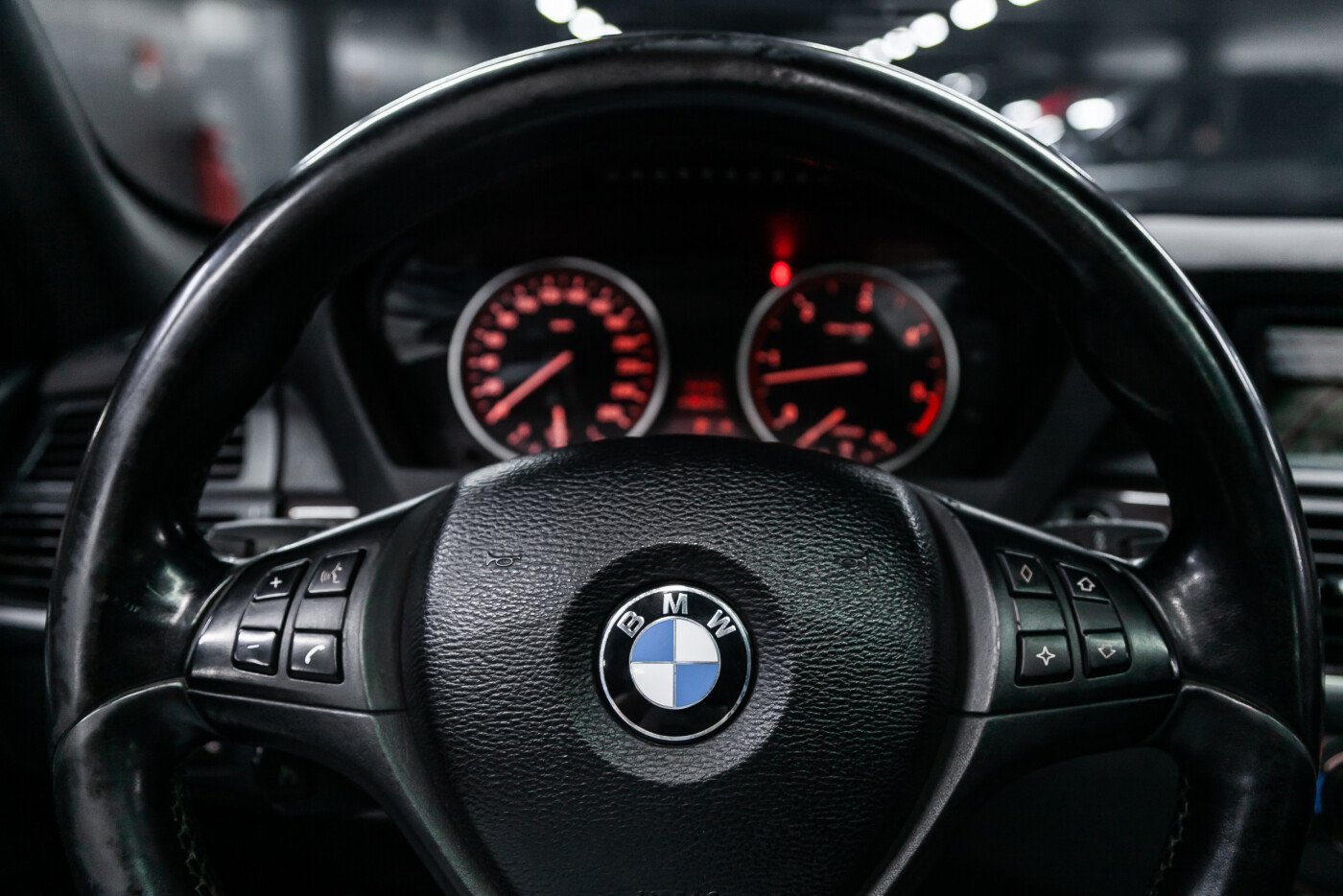

- Press and hold the odometer reset button on the lower-left corner of the cluster for 10 to 12 seconds until a maintenance icon pops up. Tip: If you see the main cluster display flicker into the basic diagnostic code menu instead of maintenance icons, release the button and let the screen go dark before trying again.
- Tap the odometer button repeatedly in 1-second intervals to scroll through the icons until you highlight the specific service you finished, like the oil can or front brake pad symbol.
- Press and hold the button for 3 seconds until the display asks “Reset?”.
- Release the button, then immediately press and hold it again for 3 seconds until the display shows a progress bar or reads “Reset successful.” Tip: If the screen shows “Reset unsuccessful,” your brake wear sensor or oil sensor is still damaged; you’ll need to replace the physical hardware before the computer clears the code.
- Push the engine start-stop button once to shut down all electronics and store the new values in memory.
How Long It Takes
The reset process takes less than five minutes if the ignition is set properly, but physical faults will delay it.
| Situation | How long | What changes it | What to watch for |
|---|---|---|---|
| Standard oil service | 1 to 2 minutes | Cluster software version | “Reset successful” text on dash |
| Brake pad replacement | 2 to 3 minutes | Replaced vs. reused wear sensor | “Reset unsuccessful” warning prompt |
| Multiple service items | 3 to 5 minutes | Number of due services | Cycling through each icon individually |
| iDrive screen sync | 5 to 10 minutes | Telematics update speed | CBS menu updating to green status |
If the procedure takes far longer than the table says, turn the car completely off, lock the doors for 5 minutes to let the control units go to sleep, and begin again.
How to Tell When It’s Done
A successful reset shows a small checkmark icon, a full progress bar, or the plain text “Reset successful” on your center instrument cluster. Turn the engine on and let it idle. If you have an iDrive display, navigate to “My Vehicle,” select “Vehicle Status,” and open the “Condition Based Servicing” (CBS) menu. Every cleared item must show a green circle instead of amber or red. For brake resets, this screen also recalculates the remaining mileage based on your driving history. When the cluster and iDrive screens conflict, turn to the BMW USA owner resources for your model year to confirm how your specific dashboard reports service clearance.
Mistakes That Ruin It
- Touching the brake pedal during setup: The engine starts up, locking out the service diagnostic menu. Keep your feet flat on the floorboard whenever you push the start button for service tasks.
- Resetting brakes without a new sensor wire: The vehicle’s computer reads an open electrical loop on the worn wire and throws an immediate reset error. Always install a brand-new sensor wire along with fresh brake pads before touching the cluster button.
- Holding the reset button too long at startup: The dashboard skips past the CBS service menu directly into the vehicle test mode. If you see secret diagnostic menus showing raw voltage readings, let go of the button, switch the ignition off, and restart.
- Clearing an oil light before draining the fluid: The onboard oil quality tracking gets wiped out, which costs you hundreds of dollars in engine sludge repairs down the line. If you didn’t pour fresh fluid in, leave the light alone; if you already did the work, reset it right away.
Frequently Asked Questions
Can I Reset the Service Indicator Without an Obd2 Scanner?
Yes, most BMW models built after 2000 let you clear standard maintenance alerts manually through the instrument cluster button. You only need a dedicated scan tool if the CBS system rejects the manual reset or if the vehicle logged a hard trouble fault in the engine control module.
Why Does My Bmw Say Reset Unsuccessful?
Your car’s onboard computer still detects an active electrical problem with that component. This happens most often with brake resets because the thin wire in the brake pad wear sensor broke. The system won’t clear the dash warning until you replace the sensor wire with a new physical part.
How Long Can I Drive Past the Service Due Date?
You shouldn’t drive more than a few hundred miles past the warning limit. While engines won’t instantly break, degraded oil loses lubrication quality rapidly. The car’s computer logs every mile driven past the service date, which can void remaining engine warranty protection at an official dealer.
Is It Safe to Reset the Brake Warning Without Changing Pads?
No, it’s dangerous because the warning triggers only after the friction material wears thin. Forcing a reset blinds you to your true stopping power and risks grinding the metal pad backing into the steel rotor, turning a simple pad swap into a far more expensive repair.
What Happens If I Reset the Wrong Service Item?
The car simply marks that maintenance task as completed and restarts the mileage counter early. You’ll lose accurate tracking of when that component actually needs maintenance next. You can check your physical paper maintenance receipts to remember the true date for your next oil or brake change.
Does Resetting the Service Light Void My Car Warranty?
No, resetting a service reminder doesn’t void your car’s manufacturer warranty. The Magnuson-Moss Warranty Act protects your right to do your own basic maintenance. However, you must keep receipts proving you used parts that match original factory specifications if you ever file an engine warranty claim.
