To clear the red light and reset your Elkay water filter status, just remove the lower front cover and press the small black reset button for about two seconds until the LED turns green. If your unit lacks this button, newer models use an automatic radio-frequency chip that resets the light as soon as you install an authentic replacement cartridge.
The system counts water gallons through a turbine sensor or a programmed timer board. If you have an older non-filtered cooler, this guide isn’t for you. This procedure only applies to bottle filling stations such as the ezH2O series.
A common slip is forcing the wrong reset method. If you have an RFID unit, don’t hunt for a hidden button on the frame. If your unit uses a mechanical button, an automatic cartridge won’t clear the board until you press it.
Resetting the Filter Light

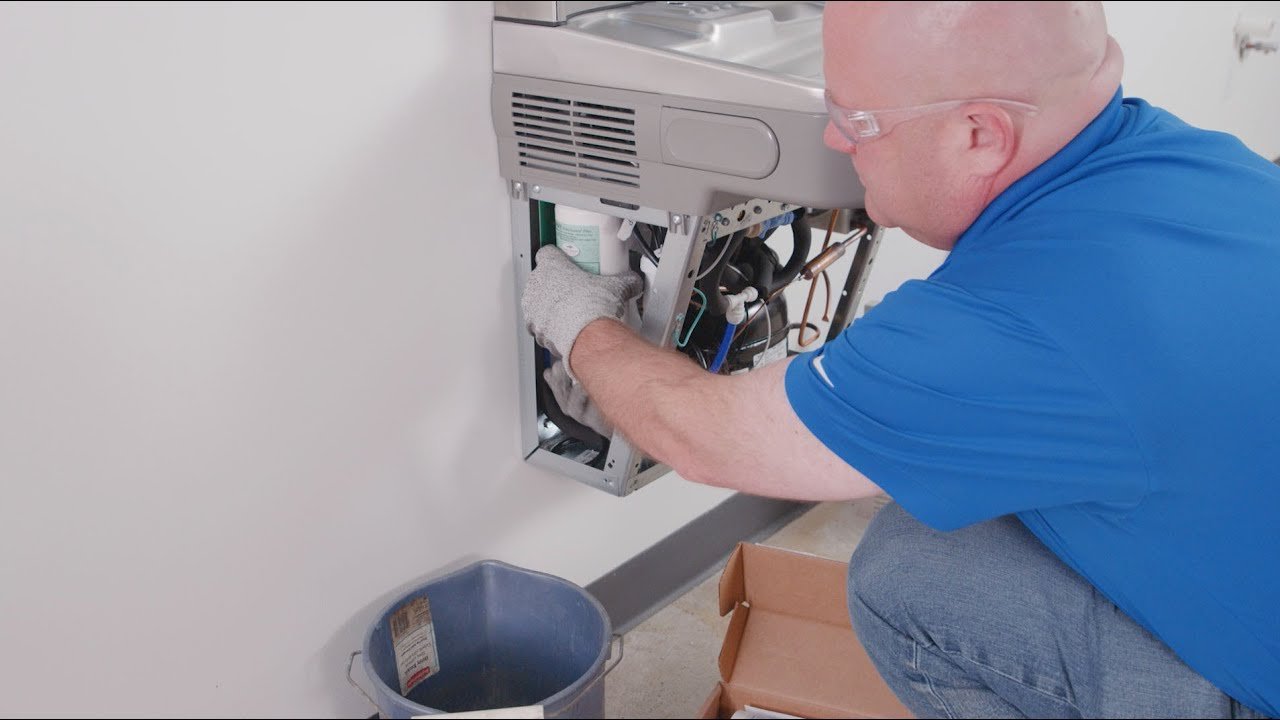

- Remove the four Torx security screws holding the lower wrapper panel using a 5/32-inch bit.
- Set the metal cover aside carefully so you don’t scratch the brushed finish.
- Locate the small black reset button mounted on the upper electrical bracket near the filter head.
- Press and hold the reset button for two full seconds, then release it immediately. Tip: Holding the button longer than five seconds can enter programming mode instead of clearing the counter.
- Watch the bottle counter face to confirm the filter light changes from red to green.
- Reinstall the lower panel and secure all four screws firmly to prevent rattling while the compressor runs. Tip: If you see damaged wiring near the board, call a licensed commercial technician rather than touching live lines.
How Long It Takes
The entire reset process takes under five minutes when you use the right driver tool.
| Situation | How long | What changes it | What to watch for |
|---|---|---|---|
| Push-button manual reset | 3 to 5 minutes | Type of panel screws | Red light switching to green |
| Auto-reset RFID filter | 30 to 60 seconds | Cartridge seating angle | Board reading the new chip |
| Resetting after cleaning line | 8 to 10 minutes | Time spent flushing air | Water sputtering at the nozzle |
If your system remains red after ten minutes of troubleshooting, the circuit board may have lost connection to the sensor harness.
How to Tell When It’s Done
The visual indicator light on the upper plastic bezel tells you the state right away. A steady green LED means you have full filter life remaining. Yellow signals you’re near the end of the cartridge life, while red shows it’s completely spent. You gain full chemical and particulate reduction only when using genuine parts for lead removal. You can settle any doubt by dispensing water; a successful reset runs the counter normally without flashing warning codes.
Mistakes That Ruin It
- Pressing the button without changing the filter. Running an old cartridge exposes drinkers to bypassed contaminants. Always twist in a fresh cartridge before clearing the warning light.
- Stripping the lower panel screws. Power drills often ruin tamper-resistant Torx heads. Use a standard hand driver instead.
- Buying unauthorized third-party cartridges. Cheap generic filters lack the internal RFID tag required by newer Elkay boards. The unit stays stuck on red unless you use a genuine filter. This varies by model — check the label on your existing bracket.
- Holding the reset button down too long. Staying on the switch past five seconds can alter your bottle counter calibration. Release the button the second the green light blinks.
Frequently Asked Questions
Can I Reset the Light Without Buying a New Filter?
Yes, on older manual units you can push the bracket button to force a green light. But this is a bad idea because the old carbon block won’t capture lead or chlorine anymore. Newer smart models won’t reset at all without a fresh RFID tag.
Why Is My Elkay Filter Light Blinking Red?
A flashing red light means the filter has exceeded its gallon limit or ran past its calendar lifespan. The internal counter stops tracking bottle savings accurately when this happens. Swapping the cartridge and hitting the button clears the flash.
How Do I Reset an Elkay Unit with No Button?
Slide a genuine Elkay filter into the bracket and twist it a quarter-turn to the right. The sensor board reads the near-field chip inside the plastic neck automatically. If it stays red, turn the cartridge slightly to line up the internal tag.
What Happens If I Ignore the Red Light?
The water pressure slowly drops as dirt clogs the internal pores. While water still flows, it tastes stale and passes unfiltered lead straight into cups. You trade lower maintenance effort for dirty drinking water.
Is the Filter Light Based on Time or Gallons?
It depends on your control board settings. Most commercial models track both 3,000 gallons of flow and a 365-day timer. Whichever limit the machine hits first triggers the yellow warning and then the red service signal.
