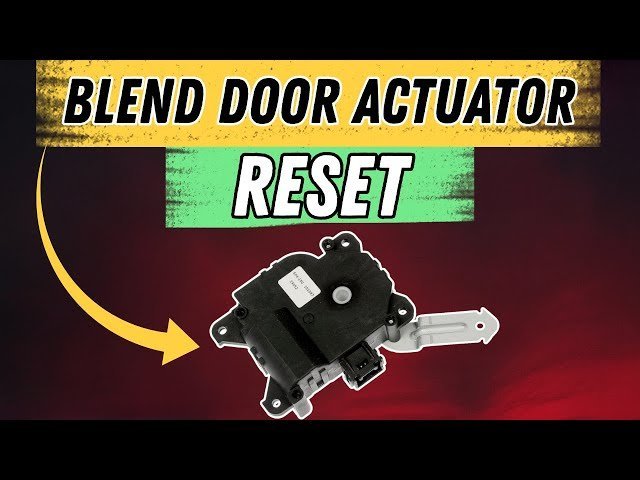

Resetting your blend door actuator takes about five minutes: pull the HVAC fuse from your vehicle’s interior fuse box, wait 60 seconds, reinsert the fuse, turn the key to the ON position without starting the engine, and let the climate computer run its automatic calibration cycle for two full minutes.
This recalibration works because the climate control computer drives the electric motor to both mechanical stop points—full cold and full heat—to record the physical range of the door. The main trade-off is simple: a calibration reset fixes lost electronic position data, but it can’t repair cracked plastic gears inside the unit.
This reset isn’t for people hearing a rapid, rhythmic knocking behind the dashboard, which means the plastic drive gear has stripped its teeth. The most common mistake is touching the dash controls during the learning cycle, which cancels the process and stores the wrong travel limits.
Recalibrating the HVAC System
- Turn the ignition off, remove the vehicle key, and switch off all climate controls on the dashboard.
- Open the passenger cabin fuse panel and pull the fuse labeled HVAC, CLIMATE, or HEATER using a plastic fuse puller. Tip: Check the fuse directory on the panel cover; this varies by model — check the label to identify the exact fuse position and amperage.
- Leave the fuse disconnected for at least 60 seconds so the internal capacitors drain and clear the system’s learned memory.
- Push the fuse firmly back into its original slot until it seats level with the adjacent fuses.
- Turn the ignition key to the ON/RUN position, but don’t crank the engine, so battery voltage powers the system steadily. Tip: Keep your hands off the dashboard; touching any dial or button during the power-up sequence interrupts the cycle.
- Wait at least two minutes while the actuator sweeps the door between both extreme ends to learn the full travel limits. If the unit continues to stick or produce grinding sounds after this cycle, stop here and take the car to an ASE-certified mechanic to avoid damaging the internal duct doors.
How Long It Takes
The recalibration process takes between 3 and 15 minutes depending on the method your vehicle’s computer requires.
| Situation | How long | What changes it | What to watch for |
|---|---|---|---|
| Standard fuse pull | 3 to 5 minutes | Fuse panel accessibility | Faint whirring behind dash |
| Battery disconnect | 12 to 15 minutes | Capacitor drain speed | Radio and clock reset needed |
| Dual-zone automatic climate | 4 to 6 minutes | Number of internal doors | Separate sweep cycles per side |
If the procedure takes longer than 15 minutes with no sounds or movement behind the dash, confirm the fuse is pushed in fully.
How to Tell When It’s Done
A successful reset produces a distinct series of faint whirring sounds from behind the dashboard as the small electric motor sweeps back and forth. You’ll know it’s complete when the motor stops moving and the interior air vents begin blowing at the target temperature. To test the repair, start the vehicle, let the engine warm up, and switch the temperature dial from cold to hot: if the airflow turns hot, the motor works; if the temperature stays lukewarm, the mechanical door or linkage is jammed. For vehicle wiring diagrams and service bulletin standards, technicians check the official Alldata repair database to verify specific calibration parameters.
Mistakes That Ruin It
- Touching climate buttons too early. Adjusting temperature dials before the two-minute cycle ends cancels the sweep and freezes the door at a partial angle; let the system sit untouched until all motor noise stops.
- Using the wrong fuse. Pulling an accessory or radio fuse leaves the HVAC memory intact and wastes your time; match the abbreviation on the fuse box lid against your owner’s manual diagram before pulling.
- Ignoring broken internal gears. Resetting an actuator that makes loud clicking sounds will strip the gear teeth further instead of fixing the problem; replace the broken actuator unit when clicks occur.
- Cranking the starter motor. Starting the engine causes a momentary voltage drop that can reset the control module mid-sweep; turn the ignition only to the ON position during setup.
Frequently Asked Questions
Can I Reset the Actuator by Disconnecting the Car Battery?
Yes, disconnecting the negative battery cable for 10 minutes clears the system memory just like pulling the fuse. However, you’ll need to reset your clock, radio presets, and power window limits afterward.
Why Is My Actuator Still Blowing Cold Air After a Reset?
Your vehicle’s blend door or motor linkage has a mechanical failure rather than a software error. When internal gears strip or the foam seal around the door jams inside the duct, software resets can’t restore movement.
How Long Does a Blend Door Calibration Take?
The computer sweeps the actuator doors back and forth in two to three minutes. Once the ignition turns to the ON position, the module runs the test immediately and shuts down the movement as soon as it records both stops.
What Happens If I Move the Temperature Dial During Calibration?
You’ll interrupt the computer while it measures the travel distance of the blend door. The module then saves false endpoint data, causing the system to blow mismatched temperatures or shut off vent air entirely until reset again.
Is It Safe to Drive with an Uncalibrated Blend Door?
Yes, driving with an uncalibrated blend door is physically safe because it doesn’t affect steering, brakes, or engine operation. However, you won’t have reliable windshield defrosting, which creates a driving hazard during cold or humid weather.
Can a Blown Fuse Prevent the Actuator from Moving?
Yes, a blown HVAC fuse completely cuts 12-volt power to the actuator motor and control panel. Inspect the metal wire inside the transparent fuse casing; if the wire is separated or burnt, install a matching replacement fuse.
