Resetting Dometic thermostat systems takes about two minutes by holding the Mode and Up buttons together while switching the unit on. This method clears frozen error codes and recalibrates communication with your RV air conditioner. It suits RV owners with digital Comfort Control Center units best.
What You’ll Need
Before you start, make sure you’ve got these items ready:
- The exact model name of your wall unit (such as the Dometic CT Single Zone or CCC2 multi-zone).
- A clean microfiber cloth to wipe the touch panel (grease on the faceplate can stop button presses from registering).
- Access to your RV 12-volt DC house fuse panel.
- A standard flathead screwdriver if you must pop off the outer cover to inspect the wire harness.
Wiping the screen with a clean cloth works well, but using wet wipes leaves moisture that can short the capacitive sensors. If your thermostat has burnt internal traces or damaged control boards, you’ll need a certified RV technician to inspect the roof unit’s relay box.
Step-by-Step
- Press the Mode button repeatedly until the screen shows “OFF” to stop active heating or cooling cycles.

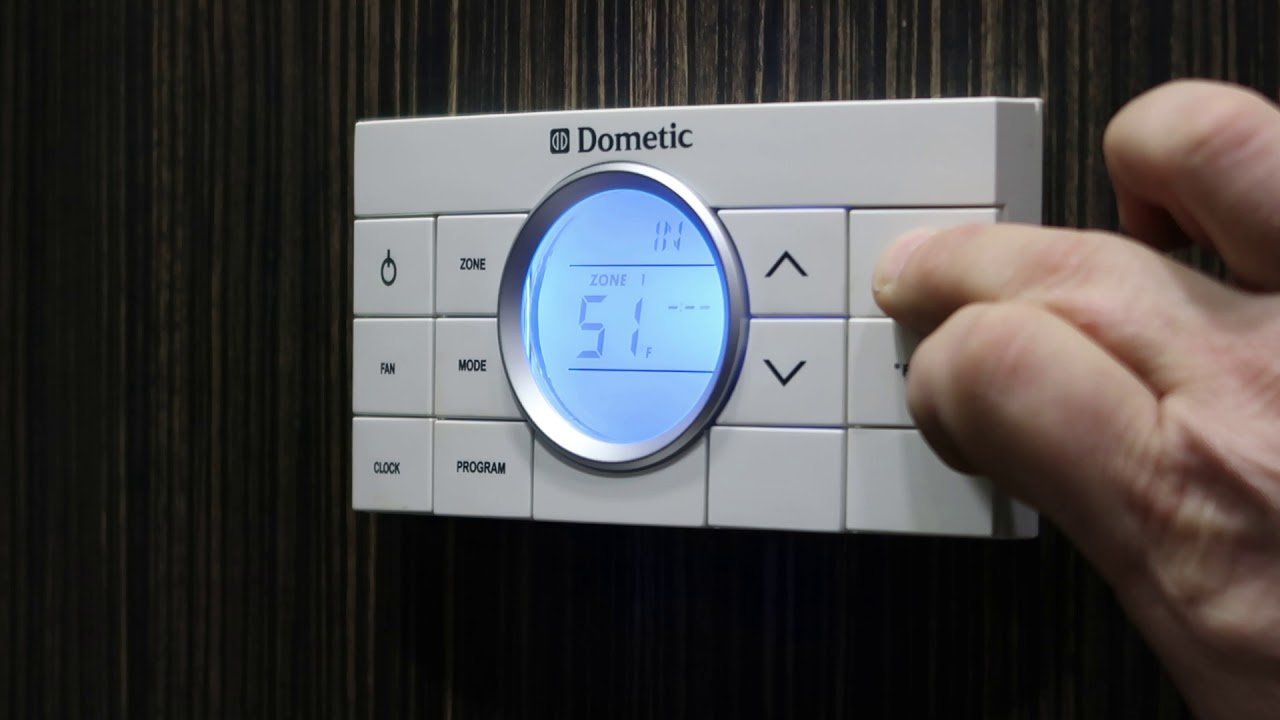

- Hold down the Mode button and the Up arrow button at the same time using two fingers.
- Keep holding both buttons firmly for three seconds until the LCD screen displays two dashes (
--). - Release both buttons immediately once the dashes appear on the display.
- Press the Mode button one time to turn the unit back on and complete the process.
Careful: Releasing the buttons before the two dashes appear cancels the sequence, which leaves the old system fault in memory.
If you have a multi-zone CCC2 thermostat, don’t skip zone configuration; if Zone 2 is missing from the screen, re-run the steps with the furnace dip switch set correctly. Touching 120-volt AC wiring inside the roof plenum carries a serious risk of shock, so leave all high-voltage electrical repairs to a certified RV mechanic.
Thermostat Models and Reset Requirements
Resetting your climate control changes depending on which wall interface your rig uses.
| Thermostat Interface | Time Required | Key Differences | Watch During Reset |
|---|---|---|---|
| Single Zone LCD (Capacitive) | 2 minutes | Uses Mode and Up arrow combo | Look for -- on screen |
| CCC2 Multi-Zone | 3 minutes | Manages multiple zones and dip switches | Confirm all zone numbers show up |
It’s safer to try a quick screen reset first rather than cutting deep house battery power immediately, because cycling all coach power wipes your clock and fridge settings unnecessarily.
How to Tell You Did It Right
A successful reset shows normal room temperature immediately after you press Mode to wake the display. You’ll hear the roof control box click after a short delay, followed by steady fan operation. A failed reset leaves the display blank or shows blinking error codes like E1 or E5.
Loss of communication between the wall display and the upper control board causes most freeze-ups. This happens when direct current line voltage drops below operating thresholds while the compressor runs. You can prevent this failure by having a technician check that your coach batteries maintain adequate voltage, cleaning phone-cable data jacks with contact cleaner, and avoiding fast button tapping that overwhelms the basic processor.
Rv Power Standards and Post-Reset Checks
The Recreational Vehicle Industry Association publishes safety guidelines for RV electrical systems, warning that low house voltage damages low-voltage digital controls. After finishing the reset, set your desired cooling temperature five degrees below the current room reading to test the relay. Let the air conditioner run for 10 minutes to verify that the compressor kicks in properly.
A standard control reset lasts indefinitely until another power drop, lightning strike, or battery disconnection interrupts the system memory. This varies by model — check the label inside your thermostat casing. Any troubleshooting that requires opening the high-voltage mains box on the RV roof needs a licensed technician to avoid shock hazards.
Other Ways to Clear Thermostat Faults
12-Volt Fuse Pull
If the buttons don’t respond, open your interior 12-volt DC fuse panel. Pull the climate control fuse out for five minutes to drain residual board capacitance, then slide it back into place. This method takes slightly longer but forces locked microprocessors to restart cleanly.
Coach Battery Disconnect
Switch off the main battery disconnect switch near your RV entrance door for two minutes. This cuts power to every 12-volt circuit, wiping active error locks across all connected accessories. It costs nothing extra, though you must reset your radio and appliance clocks afterward.
Professional Control Box Inspection
If screen resets fail to clear E1 communication faults, consult the diagnostic charts on the Dometic Support portal before hiring help. A service center technician will test the roof communication cable and circuit board with specialized diagnostic meters. This route costs professional labor fees, but it solves broken physical wiring safely.
Frequently Asked Questions
What Does E1 Mean on a Dometic Thermostat?
The E1 code means the wall thermostat lost communication with the power control board. Check your coach battery voltage first, then verify that the communication cable plugged into the back of the unit hasn’t pulled loose.
Can a Weak House Battery Cause Thermostat Errors?
Yes, weak coach batteries frequently scramble digital thermostat displays. When direct current drops below operating thresholds under load, which a technician can test, the thermostat processor freezes and shows erratic symbols or loses its connection to the air conditioner.
Why Does My Dometic Thermostat Display Two Dashes?
The two dashes show that the thermostat has entered its factory setup mode. It reads the dip-switch settings from your roof unit during this stage to learn which heat strips, heat pumps, or furnaces are installed.
How Long Should I Wait for the Air Conditioner After a Reset?
Wait about three minutes for cooling to start. Dometic control boards include an automatic time-delay feature that protects the compressor from starting against high refrigerant pressure immediately after a power reset.
Is There a Hidden Physical Reset Button on the Casing?
No, modern Dometic digital thermostats don’t have a physical pinhole reset switch. You must reset them using the front button combinations or by pulling the 12-volt house fuse.
Will Resetting the Thermostat Clear My Programmed Schedule?
Yes, resetting the unit returns all temperature settings and fan speeds to factory defaults. You’ll need to set your preferred comfort temperatures and furnace run options again once normal operation returns.
